DDS Bomb Jammer

This high-power pull-rod DDS wireless signal frequency bomb jammer can be used for important leaders VIP VIP security, individual combat, special police teams, EOD teams, anti-terrorist units, anti-drug units, explosion-proof teams, security checkpoints, administrative law enforcement, hostages Negotiations, border control and military security forces and other application places, the full-band wireless signal shielding device consists of two trolley boxes, which can be used in portable or vehicle-mounted applications. Vehicle-mounted special antennas are configured according to customer needs.

Selectable frequency band types: 20MHz-6000MHz

Features: ▲DDS digital frequency modulation: the output frequency range can be set by software, ▲ The output power can be set by software, ▲The modules can be quickly removed and replaced, Remote control and management are possible, ▲Portable

Jamming direction: omnidirectional coverage - standard omnidirectional antenna

Product Introduction

Adopt DDS digital FM jamming technology: DDS: Direct Digital Synthesized technology, broadband noise-cancelling frequency-sweeping DDS digital integration technology.

The frequency range can be set and the power can be adjusted according to the scene. The interference effect has phase continuity in time, concentration in energy, pertinence in target, and real-time tactical effect in effect. The interference effect is much better than the previous analog.

Modular design of the internal structure, the interference blocking frequency can be arbitrarily combined and adjusted, each module can be plugged and unplugged arbitrarily, and each module is independent of each other, even if a module fails, it can be replaced directly by plugging and unplugging without affecting other modules normal work.

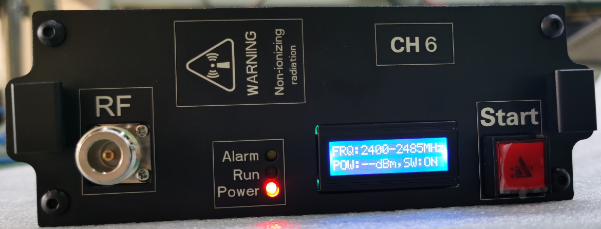

Each module has a LCD display to display the frequency, power and switch status of the module. Each module can be turned on and off independently or by the software of the whole machine, and has power supply, operation, and standing wave alarm display lights.

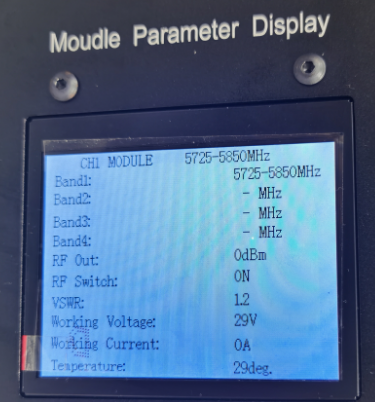

The device with a battery power display, and the whole machine has a large LCD display, which can display the frequency, power, switch status, standing wave, voltage, current, and temperature of each module. It has alarm functions such as undervoltage, overvoltage, overload, abnormal temperature, and abnormal transmission channel power. And has antenna standing wave protection function.

After connecting the device and computer with RJ45 Lan cable, set the frequency, power, switch, etc. through the whole machine software, and query all system parameters.

Each module can be turned on/off independently, and efficient frequency division is adopted, so that the equipment can achieve the best interference effect on different frequency signals

With a remote control box, it can control the power switch of all modules with one button, or control the power switch of a module individually.

The built-in intelligent temperature cooling system ensures that the host can work for a long time.

In the 20M-6000MHz frequency band, the specified frequency band can be customized, and two or more chassis can be expanded according to customer needs;

.

Product Specificaiton

Jamming range: radius 100-500 meters (-75dBm, outdoor open environment, depending on the distance of surrounding base stations);

Jamming signal types: remote control (including toy remote control, car remote control, various drones and other civilian remote control), pager (including BP machine, 114 radio station), walkie-talkie, 2G mobile phone (GSM900, DCS1800), CDMA800 mobile phones, PHS mobile phones (PHS), 3G mobile phones (CDMA2000, WCDMA, TD-SCDMA), 4G mobile phones (TD-LTE and FDD-LTE), 5G mobile phones, analog and digital cordless phones, wireless local area network (WLAN), Bluetooth , WI-FI, maritime satellites, wireless microphones, secret recording equipment through wireless transmission, Aces satellites, Thuraya satellites and amateur radio equipment, etc.

Power Supply

a. It is powered by a built-in battery, or it can be powered by a mains AC220V/50Hz through an external cable.

b. When the mains power supply is used, the built-in battery (under the condition of not fully charged) can be charged when the host is working.

c. The running time of the built-in battery (at full charge) is not less than 60 minutes (at maximum power consumption, at room temperature).

d. The battery and AC power supply can be switched seamlessly without affecting normal work.

Software control

Automatically identify the number of modules in the whole device, and obtain all parameter data of the modules.

Application

This type of knapsack mobile signal jammer, portable with built-in high capacity battery, is especially applicable to meeting halls, infantry, military security forces, SWAT team, bomb squad, anti-terrorist units, anti-drug units, anti-riot force, the EOD team, checkpoints, hostage negotiations, border control, etc.

Note:All Bomb Jammers, IED Jammers,RF Signal Jammer and RCIED Jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
